Mimosa N5-X20 - 2 Pack
MPN:
100-00088
Manufacturer:
Mimosa

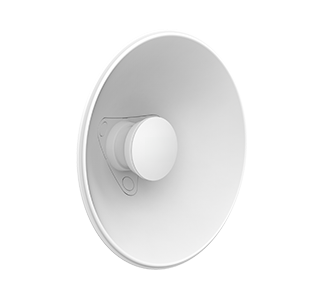

The Mimosa N5-X20 is a 20 dBi dual-polarized twist-on dish antenna for Mimosa X-Series radios, providing a compact, directional antenna option for medium- to long-range PTP and PTMP wireless links; this SKU includes two antennas.
Features:
- 20 dBi antenna gain
- 4.9–6.425 GHz N5-X antenna family
- Dual-slant 45° polarization
- 12° symmetric 3 dB beamwidth
- 35 dB minimum front-to-back ratio
- 37 dB minimum front-to-side ratio
- Mimosa N5-X twist-on interface
- Compatible with Mimosa C6x, C6x Lite Edition and B6x radios
- 200 km/h (125 mph) wind survivability
- 270 mm diameter compact dish design
- 2-pack configuration
