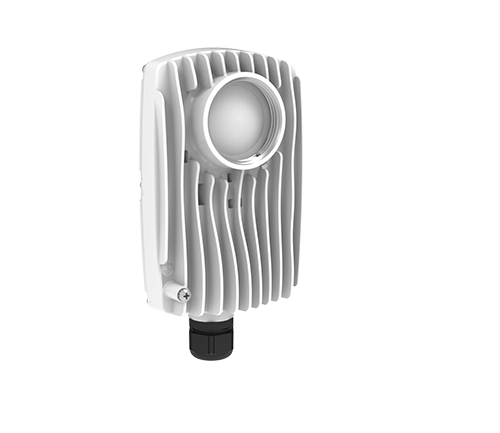

Mimosa C6x-LE
MPN:
100-00111-01
Manufacturer:
Mimosa
The Mimosa C6x Lite Edition (LE) is a cost-optimized 5/6 GHz wireless radio designed for both point-to-multipoint client and point-to-point backhaul applications. Built on the same hardware platform as the C6x, the C6x LE delivers up to 1.0 Gbps aggregate throughput in PTP deployments and up to 750 Mbps in PTMP applications while supporting efficient channel widths up to 80 MHz. An integrated 8 dBi antenna enables short-range installations, while compatibility with Mimosa's modular N5-X twist-on antenna family provides gain options up to 30 dBi for medium- and long-range links. Its rugged IP67 enclosure, advanced interference management, Gigabit Ethernet connectivity, and flexible PTP/PTMP operation make the C6x LE a cost-effective successor to the C5x for broadband, enterprise, surveillance, and industrial wireless applications.
Features:
- Up to 1.0 Gbps aggregate throughput in PTP mode
- Up to 750 Mbps aggregate throughput in PTMP mode
- 5.15–7.125 GHz hardware-supported frequency range
- 20, 40, and 80 MHz channel widths
- 2x2 MIMO with PTMP MU-MIMO support
- BPSK through 1024-QAM modulation
- Integrated 8 dBi antenna for short-range applications

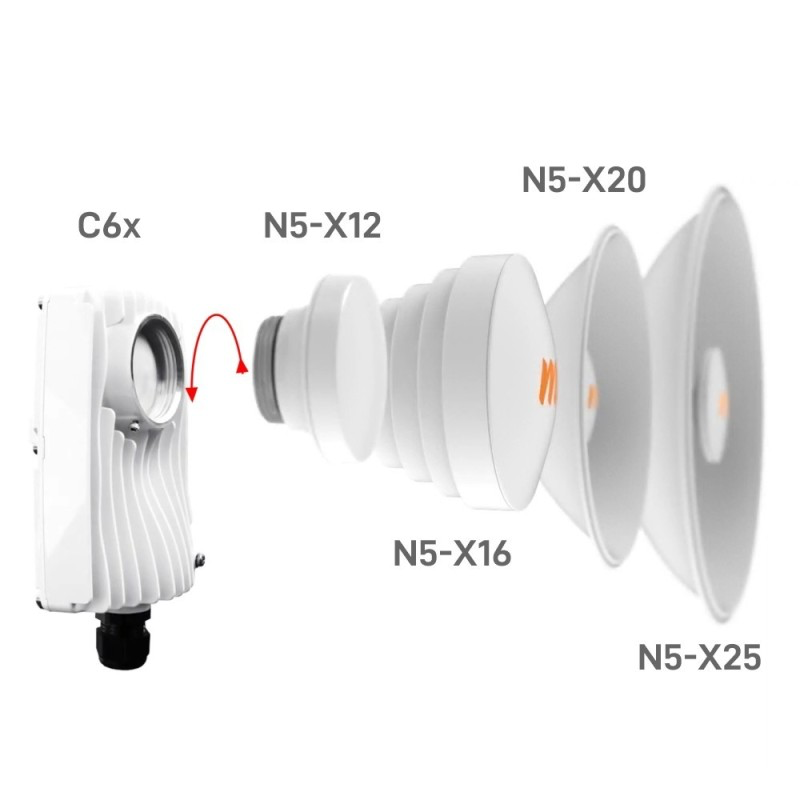

- Compatible with 12, 16, 20, 25, and 30 dBi N5-X twist-on antennas
- Smart Spectrum Management with active interference monitoring
- Gigabit Ethernet with 24 V passive PoE
- IP67-rated outdoor enclosure
- -40°C to +55°C operating temperature range
