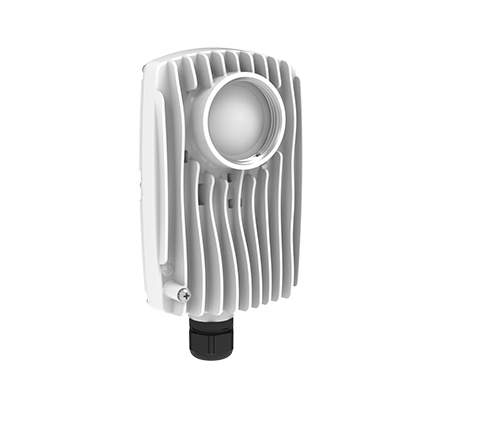

Mimosa C6x
MPN:
100-00111
Manufacturer:
Mimosa
The Mimosa C6x is a high-performance 5/6 GHz wireless client and backhaul radio designed for both point-to-multipoint and point-to-point deployments. Delivering up to 1.75 Gbps aggregate throughput in PTMP mode and 2.0 Gbps in PTP mode, the C6x combines 160 MHz channel support, 1024-QAM modulation, advanced interference management, and flexible antenna options for short- through long-range connectivity. An integrated 8 dBi antenna supports standalone operation, while Mimosa N5-X twist-on antennas provide gain options up to 30 dBi. Its rugged IP67 enclosure makes the C6x suitable for WISP subscriber access, wireless backhaul, enterprise connectivity, video surveillance, and other demanding outdoor applications.
Features:
- Up to 2.0 Gbps aggregate throughput in PTP mode
- Up to 1.75 Gbps aggregate throughput in PTMP mode
- 5.15–7.125 GHz hardware-supported frequency range
- 20, 40, 80, and 160 MHz channel widths
- 2x2 MIMO with PTMP MU-MIMO support
- BPSK through 1024-QAM modulation
- Integrated 8 dBi antenna for short-range applications

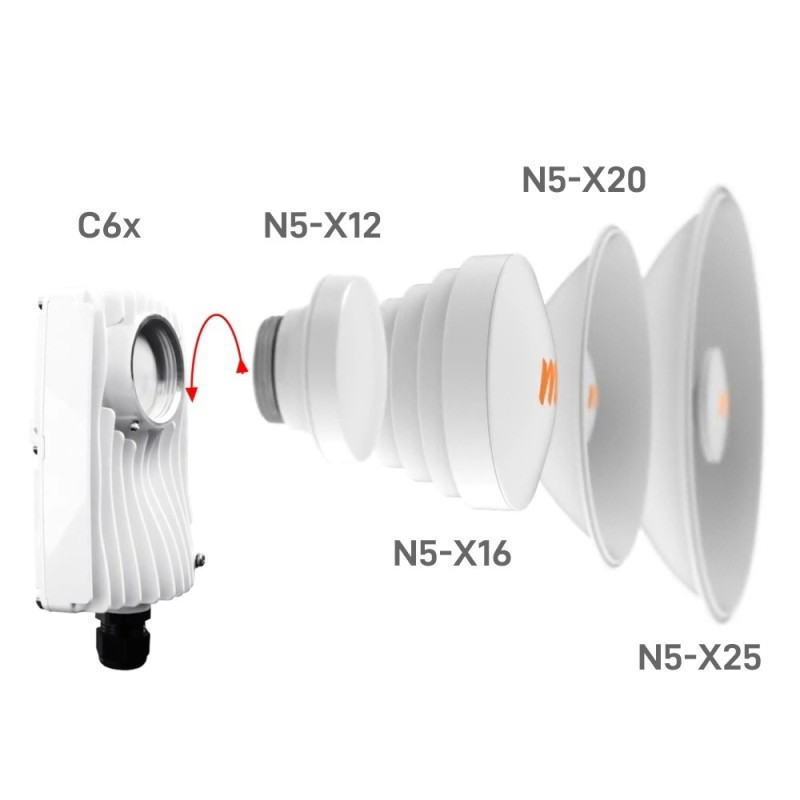

- Compatible with 12, 16, 20, 25, and 30 dBi N5-X twist-on antennas
- Smart spectrum management with active interference monitoring
- Gigabit Ethernet with 24 V passive PoE
- IP67 weather-resistant outdoor enclosure
- -40°C to +55°C operating temperature range
