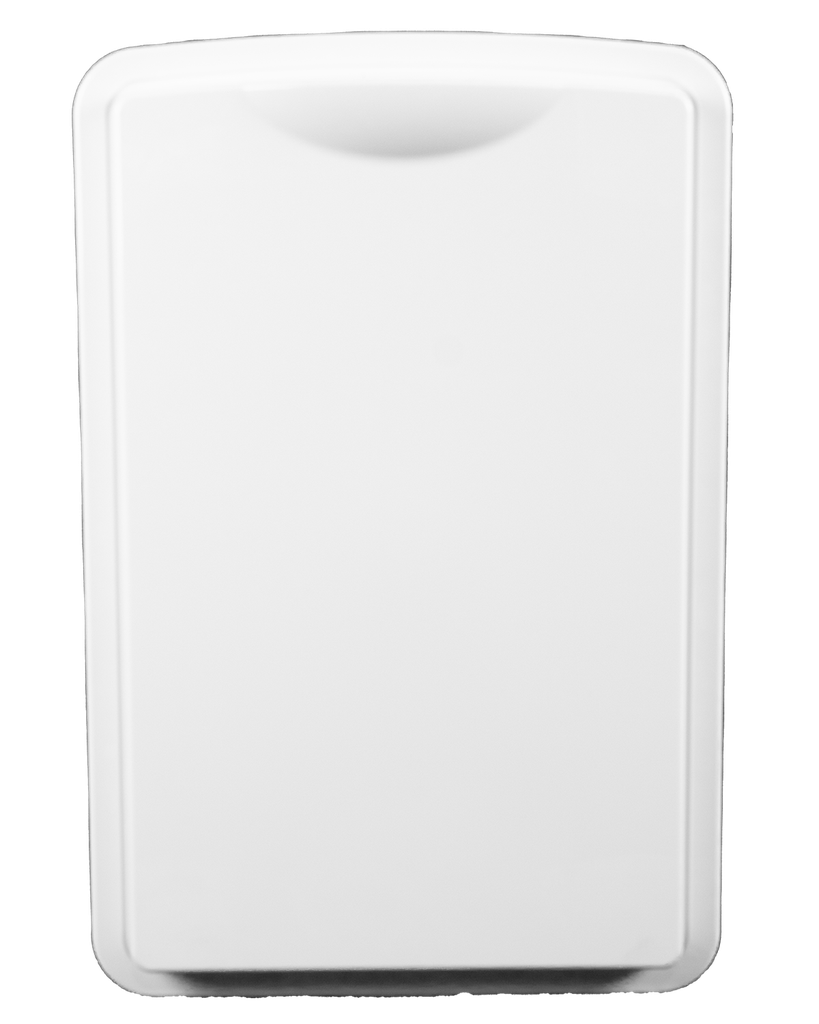

Mimosa A6
MPN:
100-00113
Manufacturer:
Mimosa

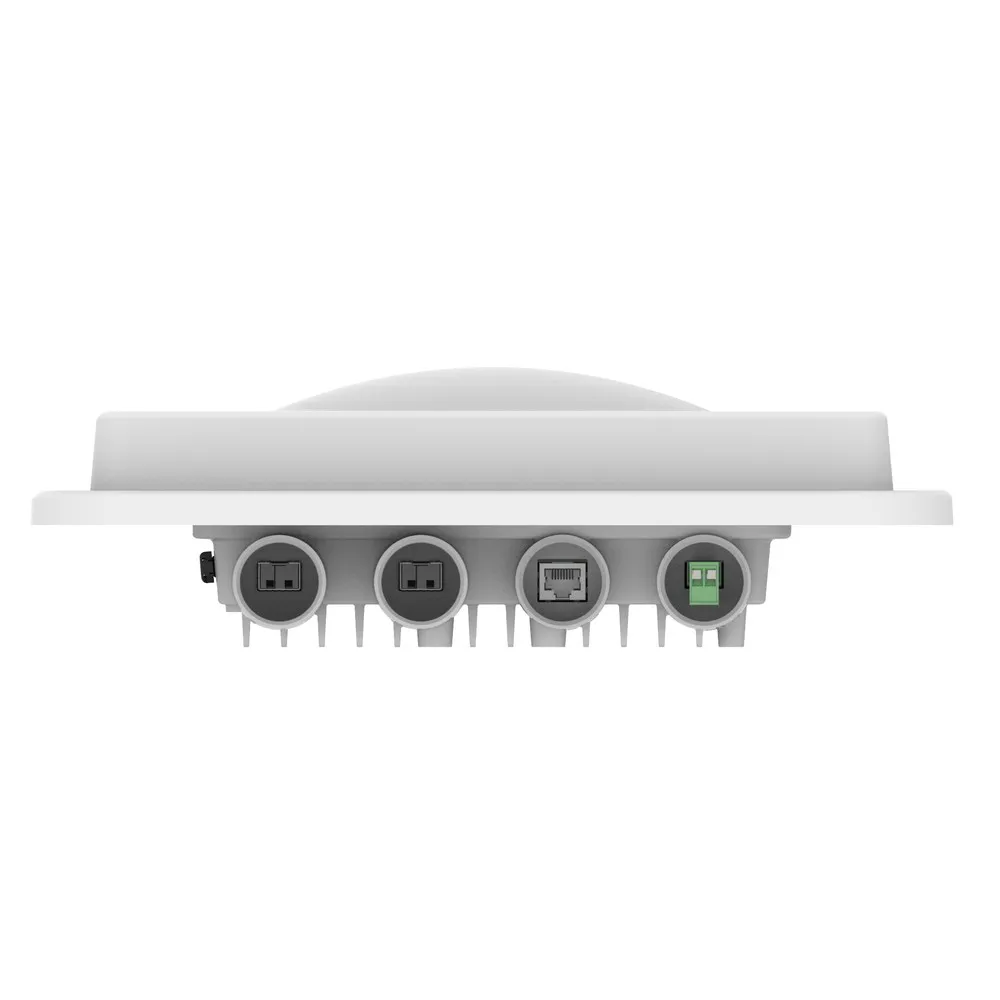

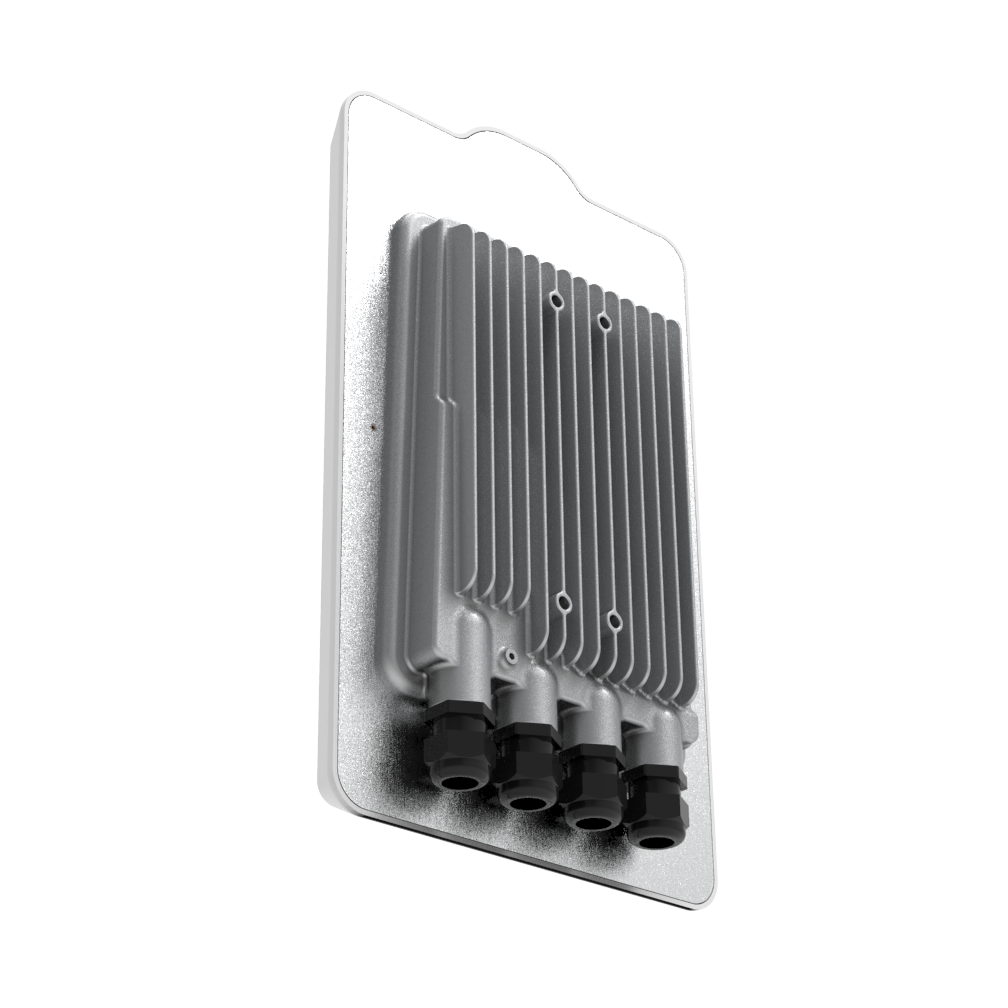

The Mimosa A6 is a carrier-grade 5/6 GHz point-to-multipoint access point engineered for high-capacity fixed wireless broadband networks. Featuring 8x8 MU-MIMO, adaptive beamforming, 1024-QAM, GPS synchronization, and channel widths up to 160 MHz, the A6 delivers up to 4.53 Gbps of aggregate sector capacity while improving spectral efficiency and performance in congested RF environments. Its integrated 90° sector antenna, dual 10 GbE SFP+ interfaces, Gigabit Ethernet PoE port, IP67 enclosure, and support for Mimosa C6, C6x, and C6x Lite clients make it well suited for scalable rural, suburban, and high-density broadband deployments.
Features:
- Up to 4.53 Gbps aggregate IP throughput
- 5.15–7.125 GHz hardware-supported frequency range, subject to regional regulations
- 20, 40, 80, and 160 MHz channel widths
- 8x8 MU-MIMO
- BPSK through 1024-QAM modulation
- Adaptive beamforming for improved link budget and interference mitigation
- Integrated 16 dBi sector antenna
- 90° horizontal and 10° vertical beamwidth
- Up to 100 client capacity, depending on deployment conditions
- GPS synchronized operation for improved frequency reuse and tower collocation
- TDMA wireless operation
- Smart spectrum management and automatic channel optimization
- AFC-ready 6 GHz operation in supported U.S. deployments
- Two 10 GbE SFP+ optical interfaces
- One Gigabit Ethernet PoE interface
- Passive 48–56 VDC PoE or dedicated DC power input
- 40 W maximum power consumption
