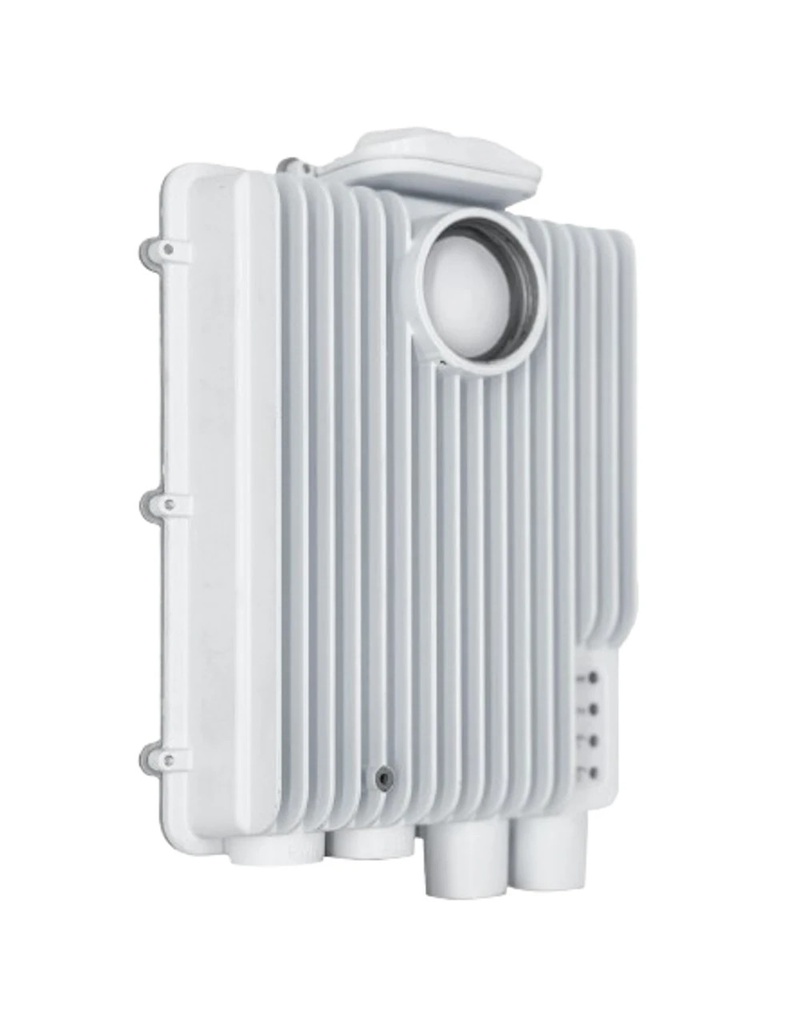

Mimosa B6x
MPN:
100-00116
Manufacturer:
Mimosa
The Mimosa B6x is a high-performance, carrier-grade point-to-point backhaul radio designed to deliver fiber-class wireless connectivity in the 5 and 6 GHz bands. Using Wi-Fi 6 technology and up to 320 MHz of aggregate channel capacity, the B6x delivers up to 3.0 Gbps aggregate IP throughput with extremely low latency. Its modular X-Series design features an integrated 8 dBi antenna and supports Mimosa N5-X twist-on antennas for higher-gain, longer-distance deployments. With GPS synchronization, advanced interference management, flexible channel configuration, and an IP67-rated outdoor enclosure, the B6x is well suited for WISP backhaul, enterprise networks, industrial connectivity, public safety, and other demanding point-to-point applications.
Features:
- Up to 3.0 Gbps aggregate IP throughput
- 5.15–6.425 GHz operating frequency range
- Wi-Fi 6 wireless technology
- Up to 320 MHz aggregate channel capacity
- Designed for short- to medium-range point-to-point backhaul
- Integrated 8 dBi antenna
- Compatible with modular Mimosa N5-X antenna system
- 12, 16, 20 and 25 dBi direct-mount N5-X antenna options
- Up to 30 dBi antenna configurations available with adapters
- GPS synchronization for improved frequency reuse and collocation
- Advanced interference monitoring and noise mitigation
- Maximum transmit power up to 24 dBm
- Carrier-grade IP67 weather-resistant enclosure
- Mimosa Management Platform support for link monitoring and diagnostics
- Compact 290 × 167 × 89 mm enclosure
- 3.7 lb (1.7 kg) radio weight
