Mimosa C6
MPN:
100-60224-03
Manufacturer:
Mimosa

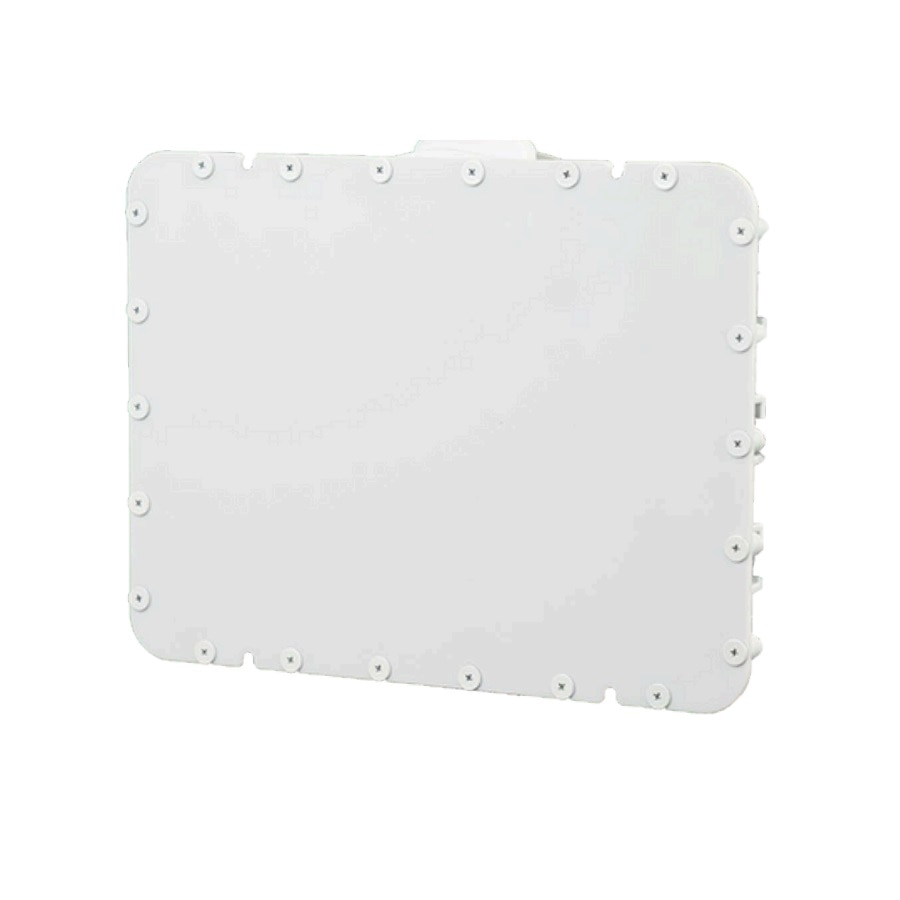

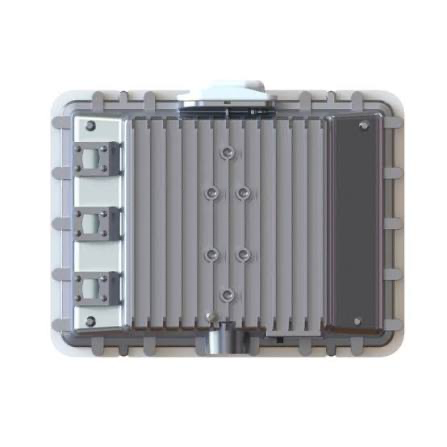

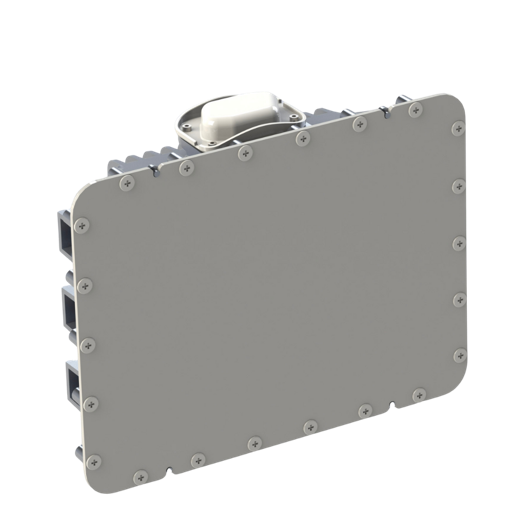

The Mimosa C6 is a high-performance 5/6 GHz point-to-multipoint client radio designed specifically for line-of-sight, near-line-of-sight, and challenging non-line-of-sight fixed wireless deployments. Its integrated 16-element antenna array, 4 spatial streams, 8T8R architecture, MU-MIMO, and advanced beamforming help maintain reliable connectivity through trees, buildings, terrain, and other Fresnel-zone obstructions. Supporting up to 2.5 Gbps aggregate wireless capacity, 160 MHz channels, 1024-QAM, GPS synchronization, and Mimosa’s interference-management technology, the C6 provides a high-capacity subscriber solution for use with Mimosa A6 access points. The rugged IP67 enclosure and integrated antenna make it well suited for residential broadband, MDUs, enterprise connectivity, video surveillance, and difficult rural deployments.
Features:
- Up to 2.5 Gbps aggregate wireless throughput
- 5.15–7.125 GHz frequency support
- 20, 40, 80, and 160 MHz channel widths
- 4 spatial streams with 8T8R architecture
- MU-MIMO with transmit and receive beamforming
- Integrated 14 dBi 16-element antenna array
- 1024-QAM modulation for high spectral efficiency
- Designed for LOS, near-LOS, and challenging NLOS deployments
- GPS/GLONASS synchronization support
- Gigabit Ethernet with passive PoE
- IP67 weather-resistant outdoor enclosure
- WPA3, AES-256, VLAN, QoS, and RADIUS security support
