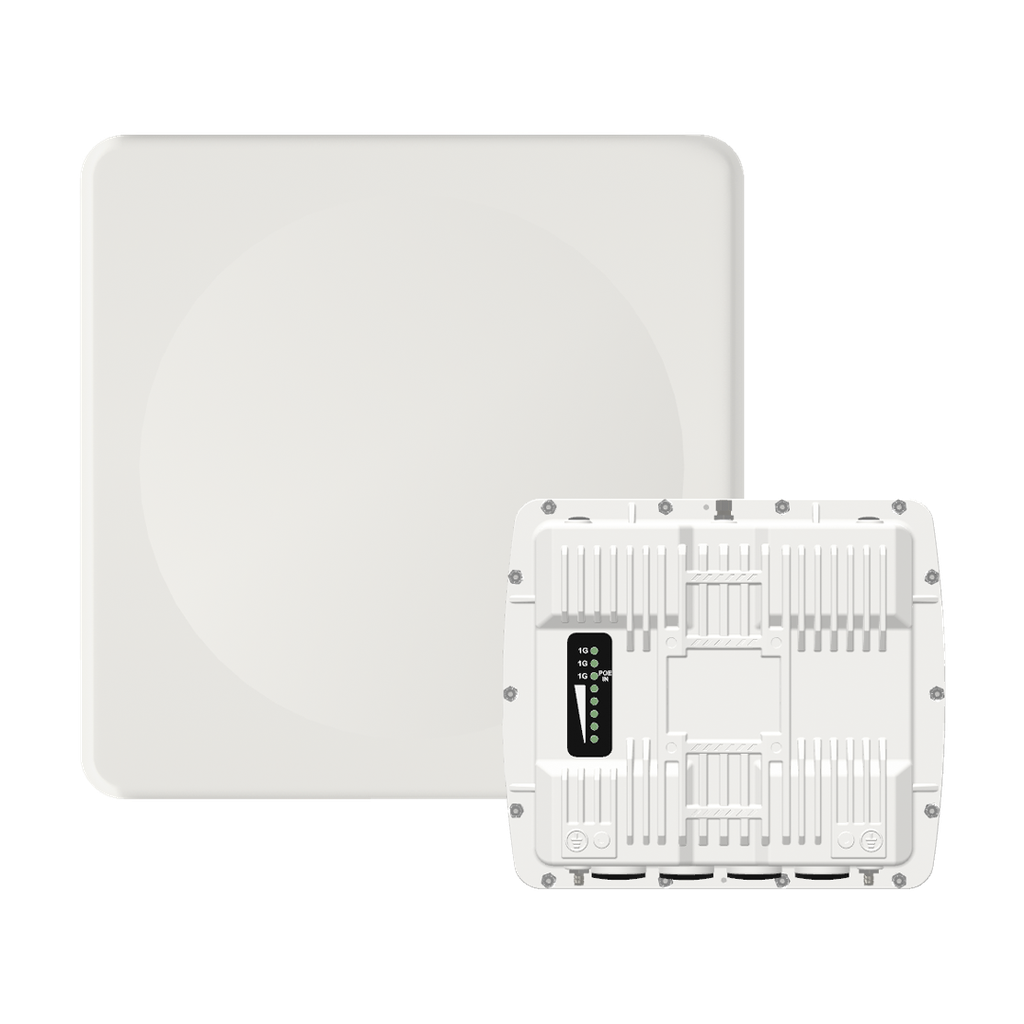

Proxim SX3-2021A-US 5ghz Stratum X3 Integrated Antenna
The Proxim Stratum X3 SX3-2021A-US is a high-performance 6 GHz outdoor wireless radio with an integrated 23 dBi dual-polarized directional antenna, designed for high-capacity point-to-point backhaul and point-to-multipoint wireless networks. Delivering throughput up to 1 Gbps, the Stratum X3 combines 2×2 MIMO performance, wide-channel operation, rugged outdoor construction, and Proxim's WORP® wireless technology in an integrated, deployment-ready platform.
Operating across 5.925–7.125 GHz, the SX3-2021A-US takes advantage of the additional spectrum available in the 6 GHz band to provide high-capacity connectivity with reduced congestion compared with traditional 5 GHz deployments. Support for wide channels and modulation up to 1024-QAM enables efficient use of available spectrum for applications including WISP infrastructure, industrial networks, video surveillance, municipal connectivity, transportation systems, campus networks, and wireless backhaul.
Integrated 23 dBi Directional Antenna
The SX3-2021A-US incorporates a 2×2 MIMO 23 dBi dual-polarized panel antenna with an approximately 9° beamwidth, providing a compact solution for long-range directional wireless links without requiring a separate antenna.
For applications requiring a different antenna pattern or gain, the radio also includes two RP-SMA antenna connectors. The installer can select between the integrated antenna and external antenna connectors through the radio's software interface, providing significantly more deployment flexibility than a conventional integrated-radio design.
Features:
- 5.925–7.125 GHz operating frequency
- 2×2:2 MIMO radio architecture
- Up to 1 Gbps wireless throughput
- Integrated 23 dBi dual-polarized panel antenna
- Approximately 9° directional beamwidth
- Two RP-SMA external antenna connectors
- Software-selectable integrated or external antenna operation
- 20 / 40 / 80 / 160 MHz channel support
- Modulation up to 1024-QAM
- U.S. Automatic Frequency Coordination (AFC) license included
- External GPS antenna included for AFC positioning
- Configurable as a Subscriber Unit or single-client Base Station
- Optional license upgrade for operation as a Base Station supporting up to 64 Subscriber Units
- Three Gigabit Ethernet interfaces
- 802.3at PoE powered
- Approximately 14–17 W maximum power consumption
- AES-128 encryption standard with optional AES-256 upgrade
- IPv4 and IPv6 support
- VLAN and QinQ support
- Integrated spectrum analyzer
- Proxim BlueConnect™ Bluetooth management
- Web GUI, SSH, SNMP and ProximVision management support
- Dynamic Channel Selection and Automatic Transmit Power Control
- IP67-rated metal enclosure
- Operating temperature: -40°F to +140°F (-40°C to +60°C)
- Wind rating up to 112.5 mph (180 km/h)
- Dimensions: approximately 12 × 12 × 3.54 in.
- Weight: approximately 5.3 lb
- Proxim part number: 906-00016
-
