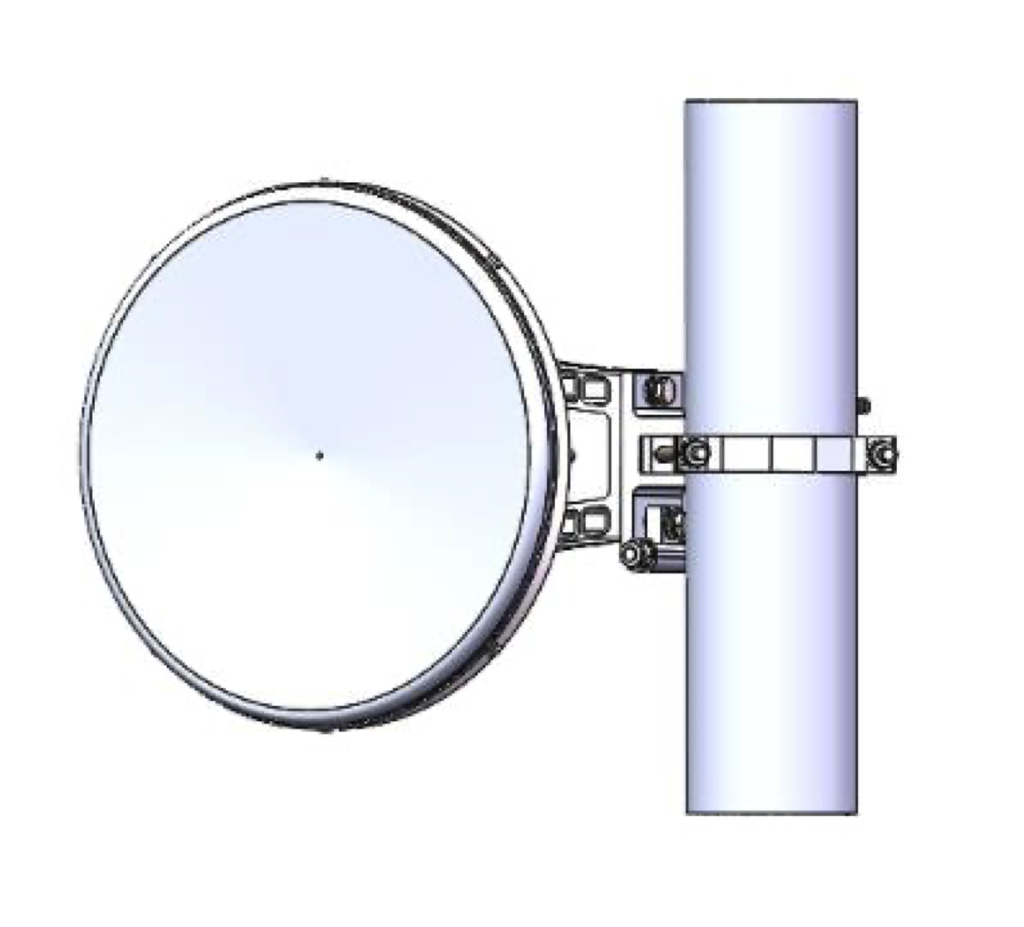

GX80-0846-1FT Proxim 1FT E-Band Antenna

The Proxim GX80-0846-1FT is a high-performance 1-foot (0.3 m) E-Band microwave antenna designed for high-capacity point-to-point wireless backhaul operating across the 71–86 GHz frequency range. Its high gain, narrow beamwidth, and rugged outdoor construction make it well suited for carrier, enterprise, WISP, public safety, utility, and industrial microwave deployments where maximum link performance is required from a compact antenna.

The GX80-0846-1FT delivers 45 to 47 dBi of gain across the operating band with a highly focused 0.8° 3 dB beamwidthin both azimuth and elevation. A 64 dB front-to-back ratio helps minimize unwanted RF energy and interference, while the single-polarized design uses a WR12 (BJ740) waveguide interface. The antenna is compliant with FCC Part 101.115 and ETSI EN 302 217 R7 Class 3 requirements.

Built for demanding outdoor installations, the antenna operates from -55°C to +70°C (-67°F to +158°F) and is rated for winds up to 112 mph during operation and 157 mph survival. Its one-piece reflector and adjustable mounting system provide ±15° azimuth and elevation adjustment for precise alignment of narrow-beam 80 GHz links.
