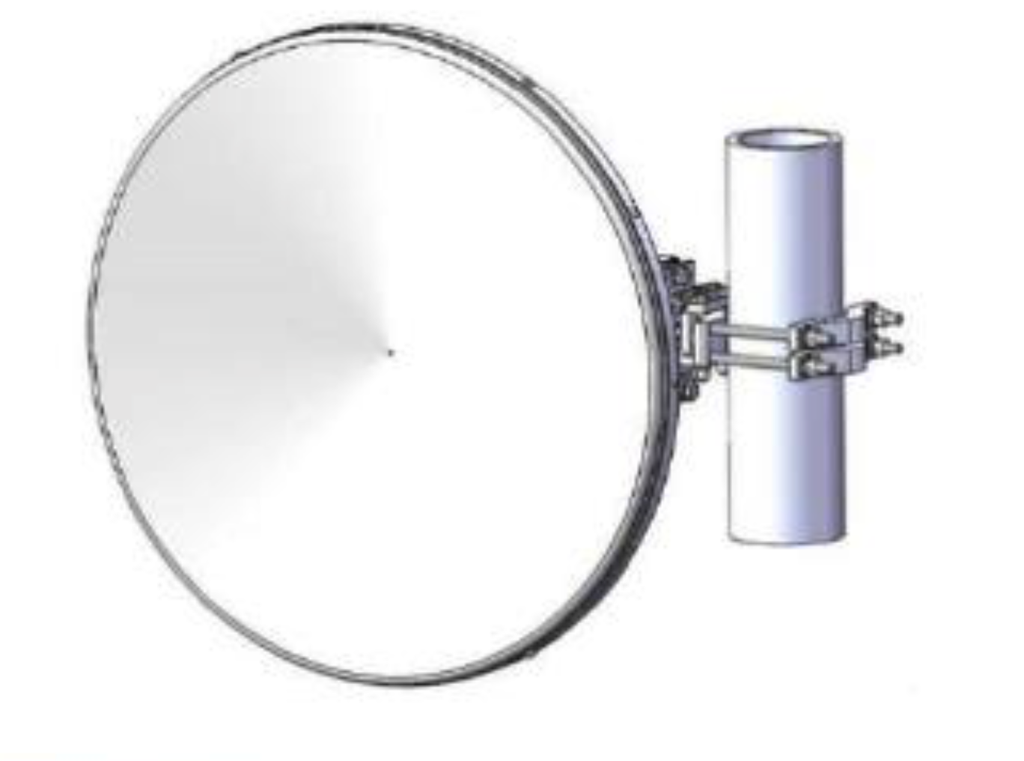

Proxim GX80-0550-2FT E-Band Antenna
MPN:
949-00173
Manufacturer:
Proxim
2-foot (60 cm) high-gain E-Band parabolic antenna for the Proxim GX80 80 GHz wireless platform. Provides 50 dBi nominal gain and a narrow 0.5° beamwidth for long-range, high-availability 71–86 GHz point-to-point links. Rugged outdoor construction supports demanding carrier, WISP, enterprise, utility, and industrial backhaul applications.
Features:
- 2 ft / 60 cm high-gain parabolic antenna
- Designed for Proxim GX80 80 GHz point-to-point systems
- 71–86 GHz E-Band coverage
- 50 dBi nominal gain
- Up to approximately 51 dBi across the band based on the corresponding PROSE antenna
- 0.5° nominal beamwidth
- Single-polarized design
- 27 dB XPD
- 14 dB return loss
- WR12 / BJ740 waveguide interface on the corresponding PROSE model
- ETSI 302 217 Class 3
- FCC Part 101-compatible E-Band application
- -55°C to +70°C operating temperature
- 112 mph operational / 157 mph survival wind rating
- One-piece reflector
- ±15° fine azimuth and elevation adjustment
-
