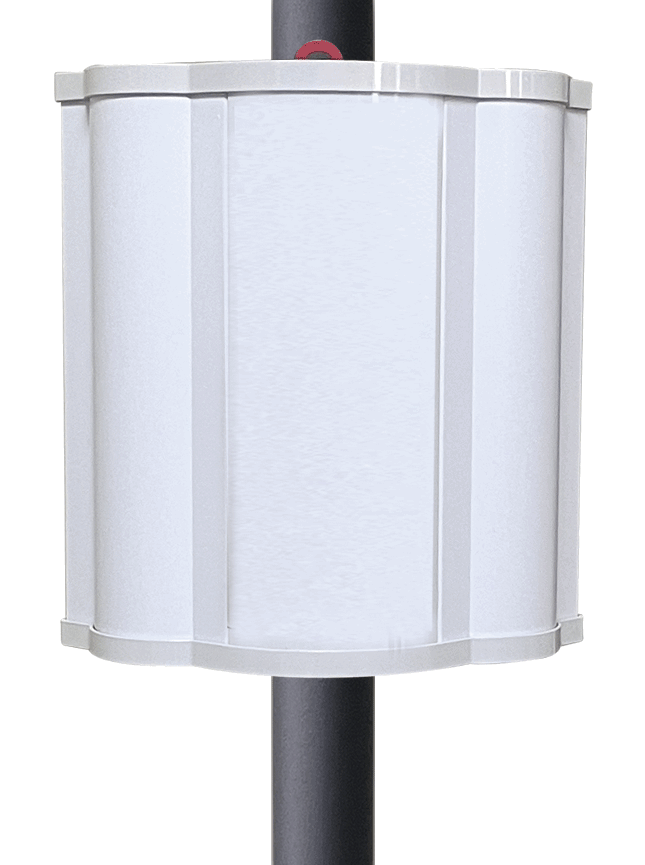

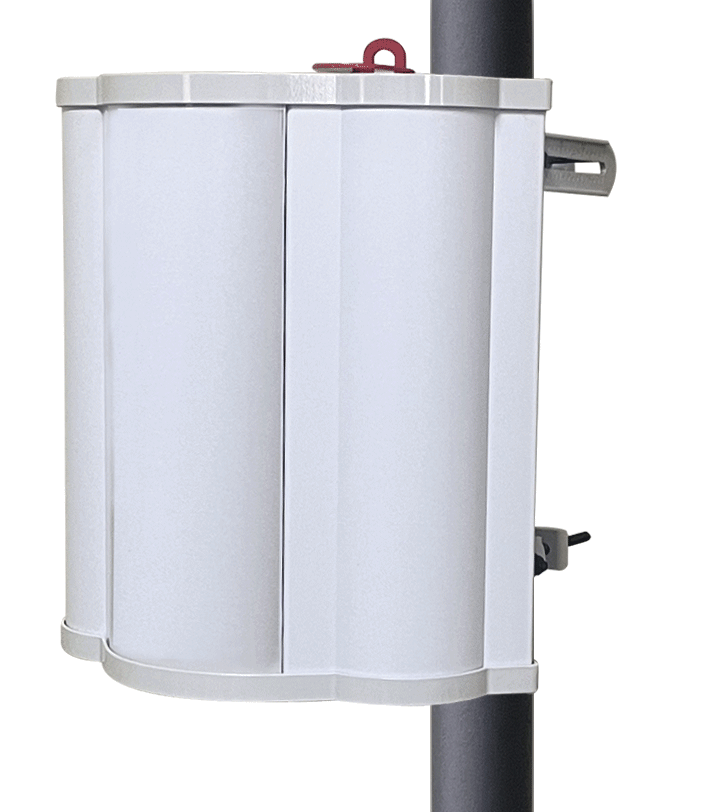

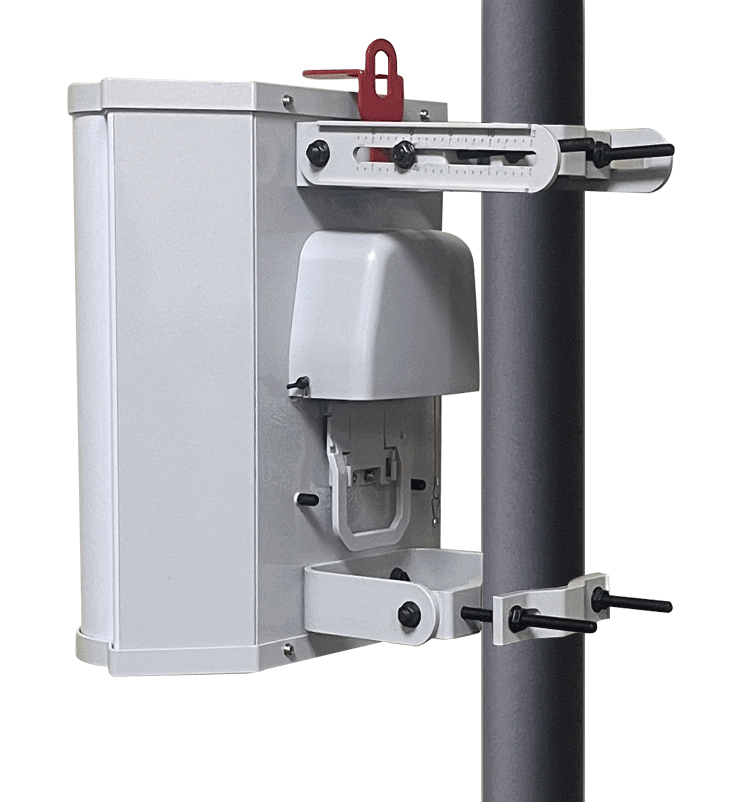

Linq 5.15-6.875GHz,V2, 4X4 MIMO, V & H Pol, 90 °(-6dB)/ 60 ° (-3dB), 18dBi Sector Antenna
The LinQ LPA5168HVX is a high-performance 5.15–6.875 GHz 4×4 MIMO sector antenna designed for Wi-Fi 7, fixed wireless access, WISP, and high-capacity outdoor wireless networks. With 18 dBi gain and broadband operation across both 5 GHz and 6 GHz spectrum, the antenna provides a versatile platform for modern multi-band wireless deployments.
The LPA5168HVX uses four antenna ports arranged as two independent 2×2 MIMO sets positioned 90 degrees apart. Each sector provides approximately 90° coverage at -6 dB and 60° at -3 dB, allowing a single antenna to provide approximately 180° total coverage at the -6 dB level. This architecture provides broad sector coverage while maintaining the directional gain needed for longer-distance subscriber connections.
Wideband 4×4 MIMO Sector Coverage
Designed for both current and next-generation wireless systems, the LPA5168HVX combines 4×4 MIMO capability, vertical and horizontal polarization, 18 dBi gain, and wide 5.15–6.875 GHz frequency coverage in a compact sector antenna. Its broad operating range makes it well suited for WISP base stations, industrial wireless networks, municipal broadband, transportation infrastructure, campus networks, and other high-capacity point-to-multipoint deployments.
Features:
- 5.15–6.875 GHz operating frequency range
- 4×4 MIMO antenna architecture
- 18 dBi antenna gain
- Vertical and horizontal polarization
- Four RF ports
- Two independent 2×2 MIMO antenna sections
- Approximately 90° coverage per section at -6 dB
- Approximately 60° coverage per section at -3 dB
- Approximately 180° combined coverage at -6 dB
- Supports both 5 GHz and 6 GHz wireless deployments
- Designed for Wi-Fi 7 and next-generation fixed wireless networks
- Suitable for WISP, industrial, municipal, campus, and private wireless networks
- High-gain directional design for longer-range subscriber connectivity
- Compact sector design helps reduce tower and rooftop installation complexity
- LinQ model: LPA5168HVX
