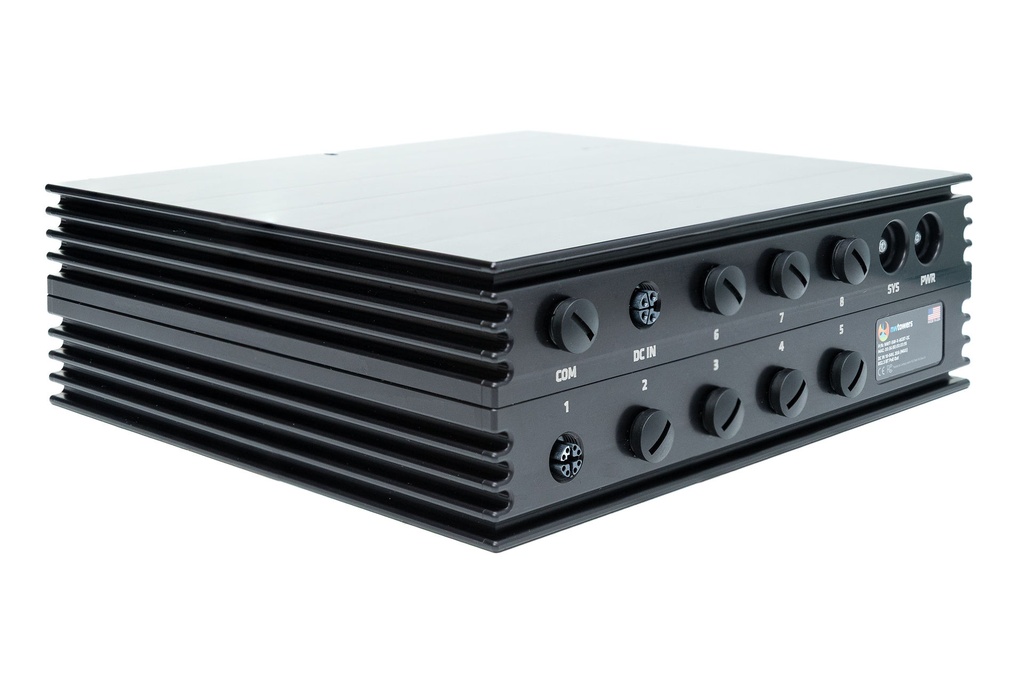

Industrial M12 802.3bt POE+++ Switch 500W 10-60VDC
The NWT-SW-X-8GBT-DC is a rugged, industrial-grade managed Layer2+, Gigabit PoE++ Ethernet switch designed for mission-critical networking in harsh and outdoor environments. This managed industrial M12 Switch Features eight M12 X-coded Gigabit Ethernet ports with full IEEE 802.3af/at/bt (PoE+++) support. The switch delivers up to 500W of total PoE power to reliably operate cameras, radios, sensors, and edge devices over a single cable. A wide 10–60V DC input range ensures stable operation across mobile, vehicular, and fixed industrial power systems.
Housed in a fully sealed IP67 enclosure and rated for -40°C to +80°Coperation, the NWT-SW-X-8GBT-DC is built for environments where standard Ethernet switches fail. Advanced Layer 2+ switching, comprehensive security, and flexible management via web UI, CLI, SNMP, SSH, and REST API provide the control and visibility required for industrial automation, transportation, utilities, and mining networks demanding maximum uptime and durability.
Features:
- 8 × M12 X-Coded Gigabit Ethernet ports with IEEE 802.3af/at/bt PoE+++
- Up to 500W total PoE output (dependent on input voltage)
- Wide 10–60V DC input via M12 L-Code connector
- IP67-rated sealed enclosure for dust, water, and vibration resistance
- Extended temperature range: -40°C to +80°C
- Layer 2+ switching with VLAN, QoS, link aggregation, and spanning tree
- Advanced PoE management with per-port control and REST API support
- Robust security including 802.1X, ACLs, DHCP snooping, and MAC security
- Comprehensive management: Web, CLI, SNMP v1/v2/v3, SSH
- 6kV surge and 8kV ESD protection for industrial environments

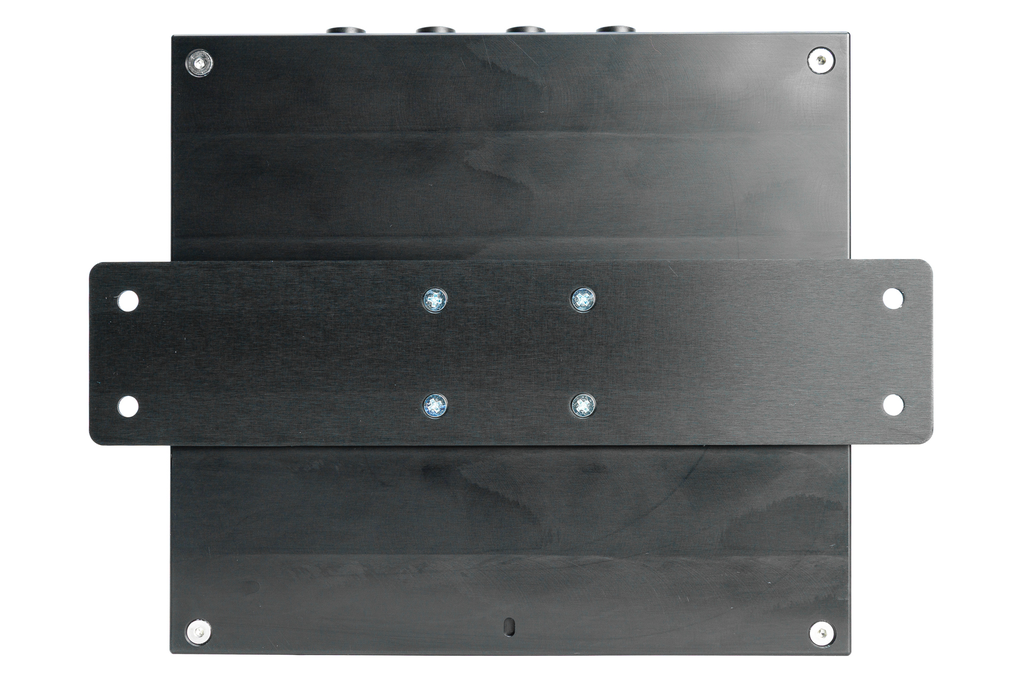

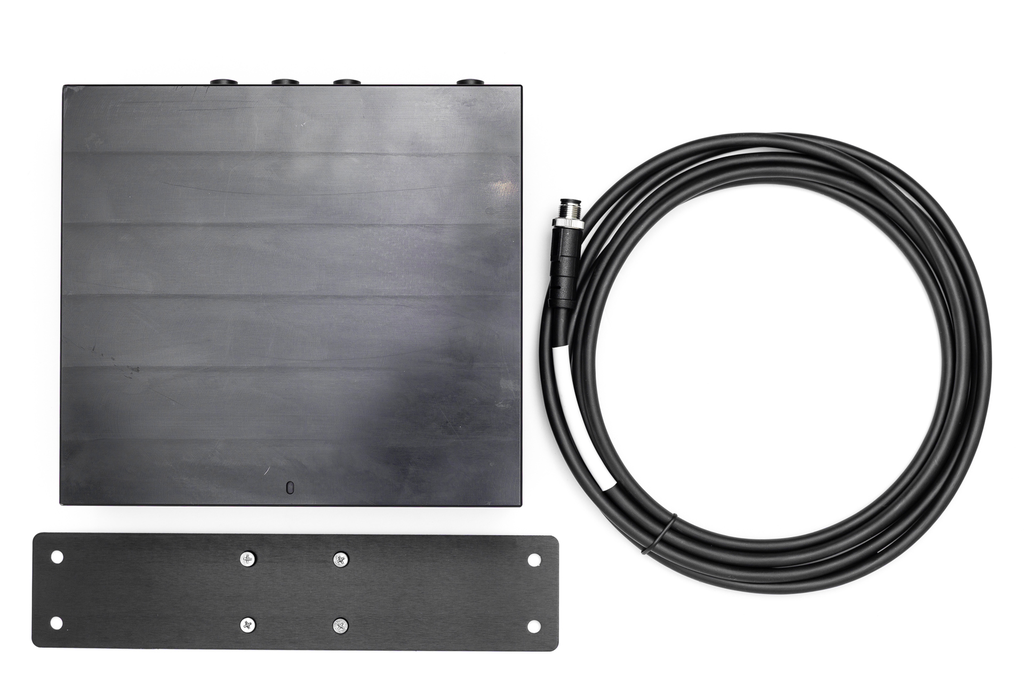

- Wall Mount Included with DIN-Rail mount and pole mount options available
