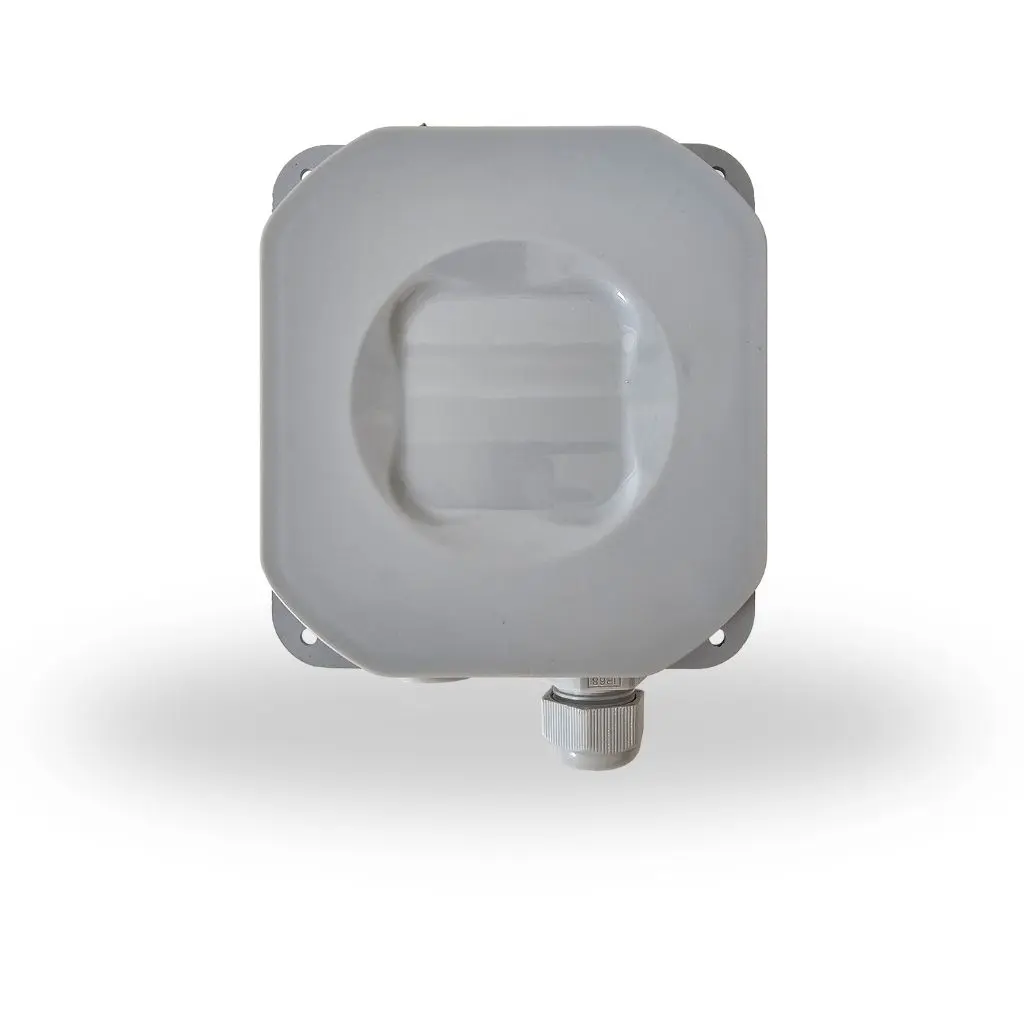

Radwin TerraNet V90 2.3 Gbps Modular 60 GHz PtP/PtMP Radio
MPN:
RW-6P02-9260
Manufacturer:
Radwin
TerraNet V90 is Radwin's modular 60 GHz PtP/PtMP platform, combining a 90° integrated beamforming antenna with field-swappable lens options for sector coverage or narrow-beam long-range links.
Features:
- Up to 2.3 Gbps net aggregate capacity
- 57–71 GHz operation
- Integrated 16 dBi beamforming base antenna
- 90° base azimuth coverage
- 45°, 6°, and 4° external lens options
- Up to 37 dBi gain with lens antenna
- Up to 4 km range depending on lens
- Up to 32 subscriber units
- 2.5GbE PoE-in plus 1GbE PoE-out
- Automatic antenna alignment
- Dynamic TDD
- IP67 enclosure
