Radwin TerraNet V90
MPN:
RW-6P02-9260
Manufacturer:
Radwin

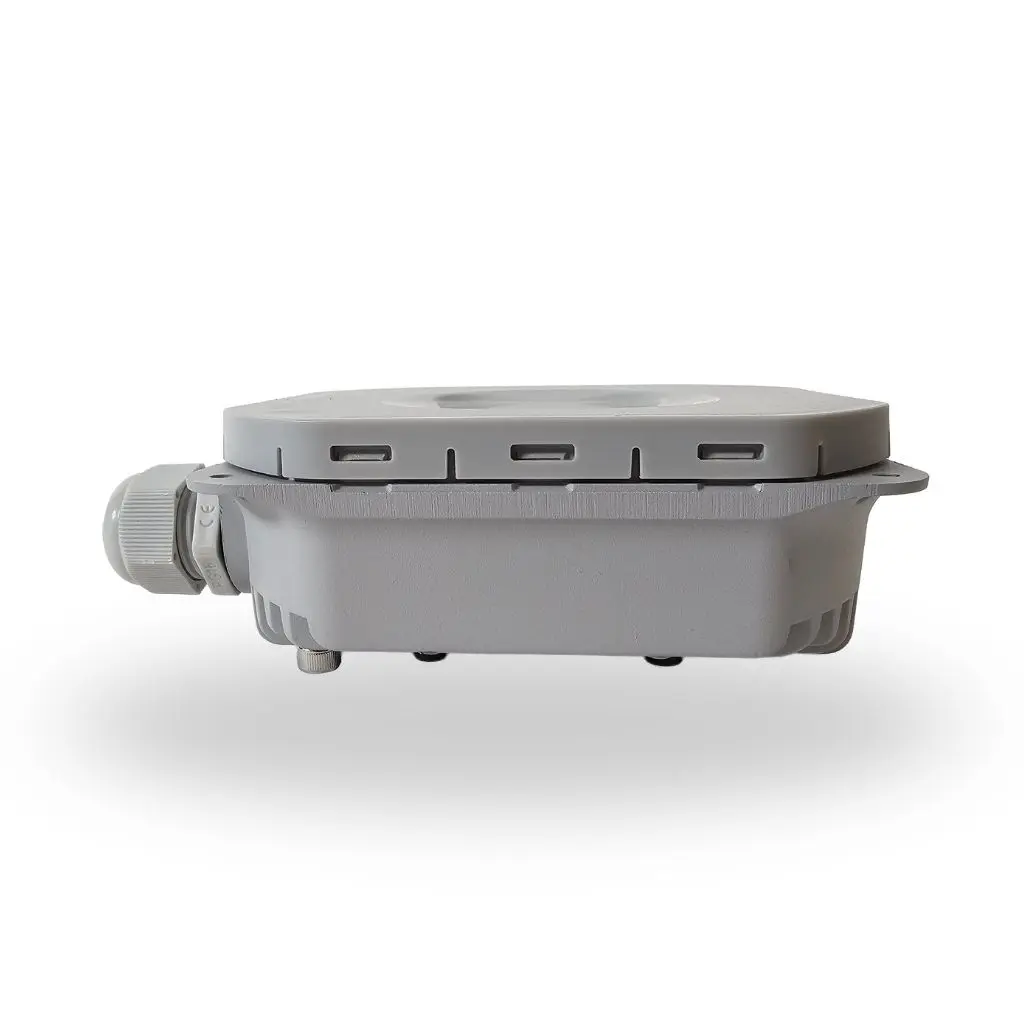

RADWIN TerraNet V90 is a modular 60 GHz mmWave radio purpose-built for flexibility. Designed to serve both Point-to-Multipoint (PtMP) and long-range Point-to-Point (PtP) applications, the V90 supports swappable antenna lens kits that adapt beamwidths from ultra-wide 90° to ultra-narrow 4°.
With up to 2.3 Gbps of net aggregate throughput and automatic beam alignment, TerraNet V90 enables high-performance wireless connectivity across urban, suburban, or industrial environments, whether for broadband access, backhaul, or smart infrastructure.
Features:
- Modular radio supporting PtMP and PtP configurations
- Operates in 60 GHz full band: 57–71 GHz
- Swappable lens kits: 90°, 45°, 6°, 4° beamwidths
- Up to 2.3 Gbps net aggregate capacity
- Integrated beamforming antenna with auto-alignment
- Supports up to 32 Subscriber Units in PtMP mode
- Range up to 4 km (depending on antenna lens)
- AES+GCMP 128-bit encryption
- Dynamic TDD and advanced QoS features
- IP67-compliant enclosure for harsh environments
- 2.5G RJ45 (PoE in), 1G RJ45 (PoE out) interface
- Backup link support via PoE out port
