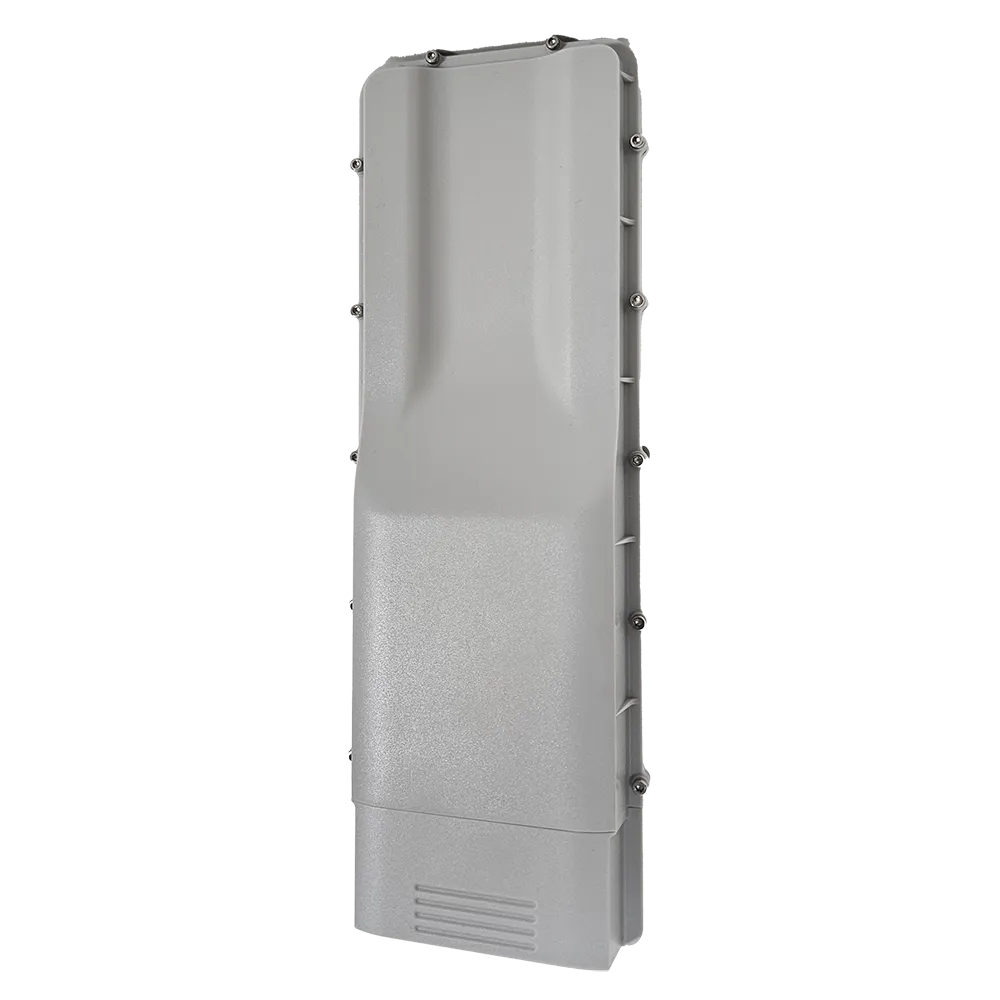

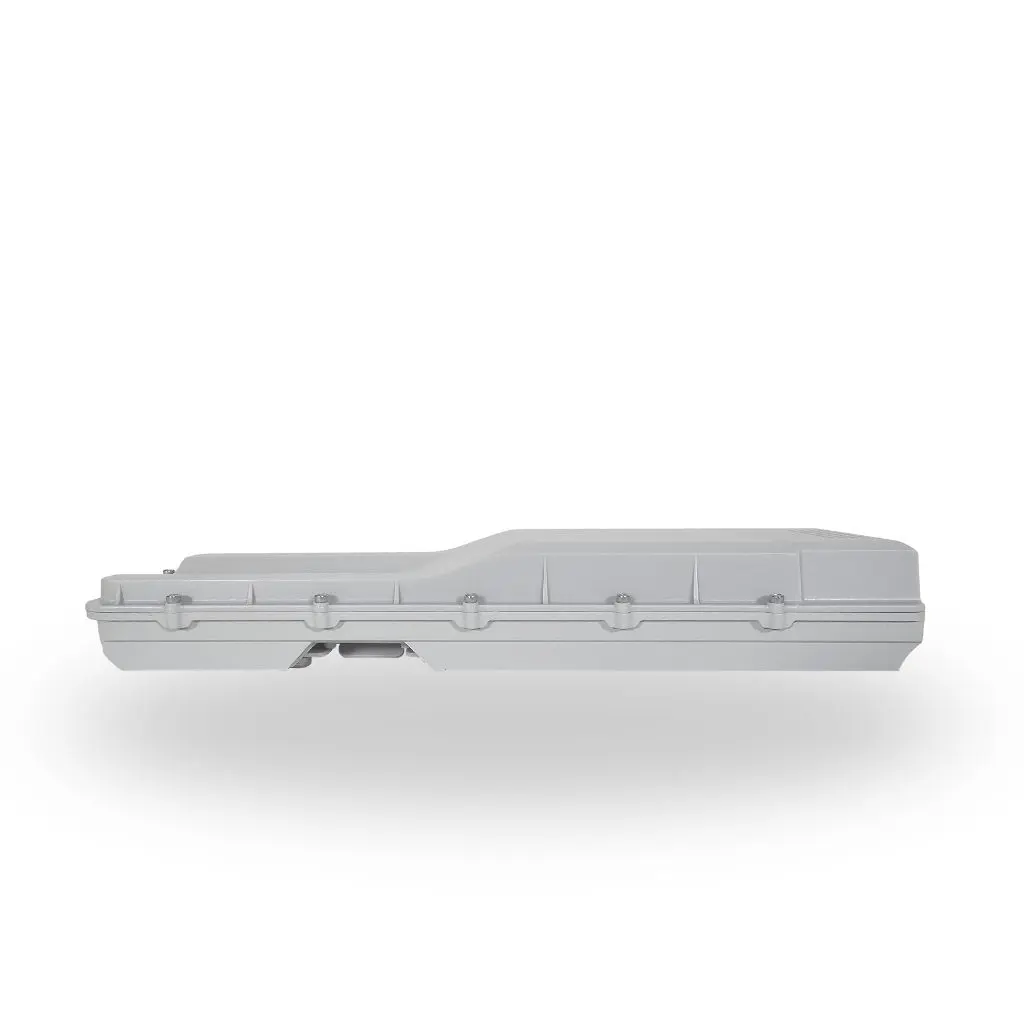

Radwin TerraNet V120
MPN:
RW-6V02-9160
Manufacturer:
Radwin
RADWIN TerraNet V120 is a powerful 60 GHz mmWave radio designed for both Point-to-Multipoint (PtMP) and Point-to-Point (PtP) deployments. With a wide 120° integrated beamforming antenna and automatic alignment, it enables rapid deployment of multi-gigabit connectivity in dense urban environments, smart campuses, and industrial zones.
Offering up to 2.3 Gbps throughput and low latency in the unlicensed 60 GHz band, TerraNet V120 is a high-performance alternative to fiber for last-mile access, high-speed backhaul, and advanced edge connectivity.
Features:
- Supports both PtMP and PtP configurations
- Up to 2.3 Gbps net aggregate capacity
- Wide 120° integrated beamforming antenna
- Operates in 60 GHz full band: 57–71GHz
- Automatic antenna alignment
- Supports up to 32 Subscriber Units in PtMP mode
- AES+GCMP 128-bit encryption
- Dynamic TDD and DL/UL traffic shaping
- Compact and IP56-rated enclosure
- 2.5G RJ45 (PoE in), 1G RJ45 (PoE out) interface
- Backup link supported via PoE out port
