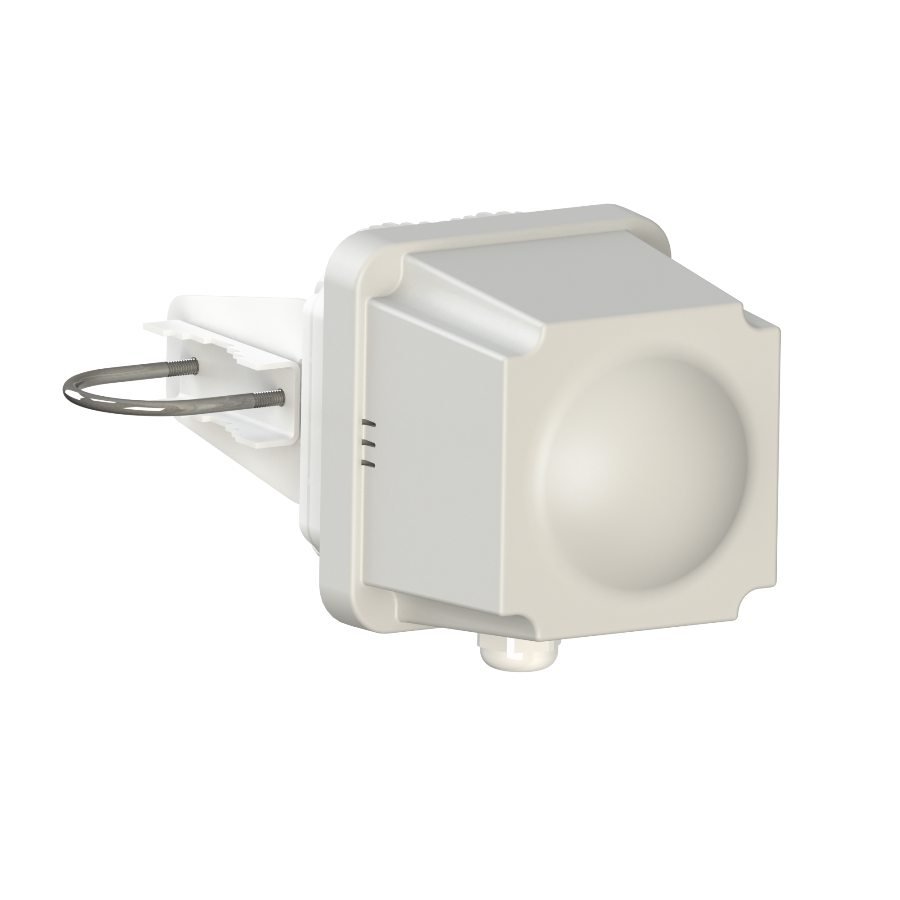

Radwin TerraNet 6° Lens Antenna 33 dBi

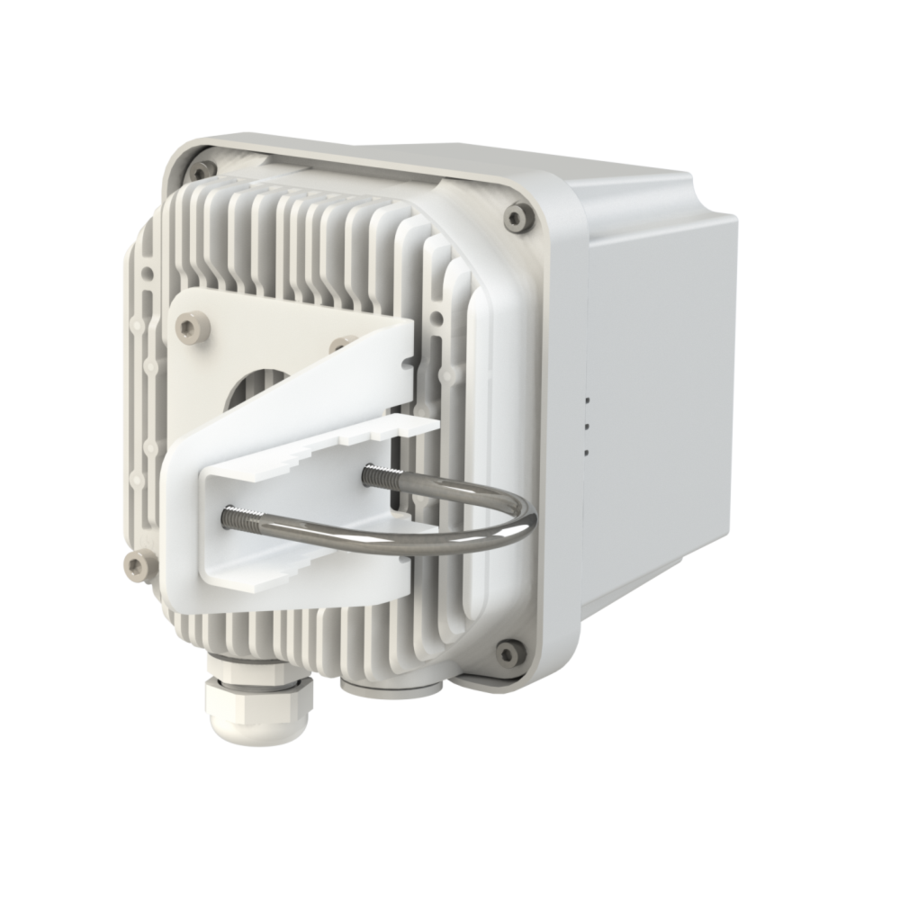

The RADWIN 100 mm Antenna Lens Kit is a high-gain directional antenna upgrade for the TerraNet V90 60 GHz mmWave radio. Designed for applications requiring greater range and more focused RF coverage, the lens converts the V90's wide integrated antenna pattern into a narrow 6° × 6° beam with 33 dBi gain.

The V90's modular architecture allows antenna lens kits to be installed or changed without replacing the radio, enabling a single platform to support applications ranging from wide-area Point-to-Multipoint coverage to highly directional Point-to-Point links. RADWIN supports V90 antenna configurations ranging from 90° coverage down to 4°, with the 100 mm lens providing a practical balance between increased gain, narrow beamwidth, and compact size.

Operating across the V90's 57–71 GHz frequency range, the 100 mm lens maintains the radio's electronic beamforming and automatic alignment capabilities. This simplifies installation while providing a significantly improved link budget compared with the V90's standard wide-beam configuration. The V90 platform supports up to 2.3 Gbps net aggregate throughput and can operate in either Point-to-Point or Point-to-Multipoint configurations.

The compact 100 mm lens is well suited for wireless backhaul, industrial networks, broadband access, surveillance, smart-city infrastructure, construction sites, mining operations, and other applications where fiber-like capacity is needed without the cost or delay of installing physical fiber.
